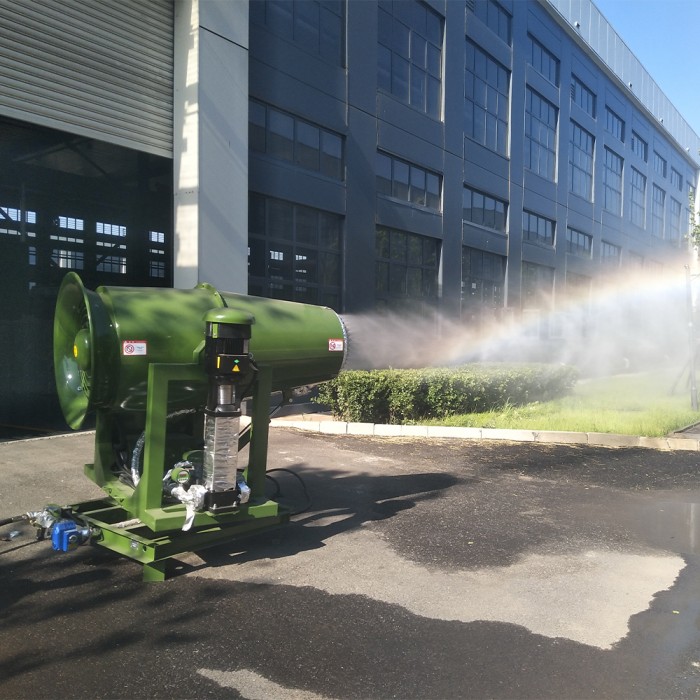

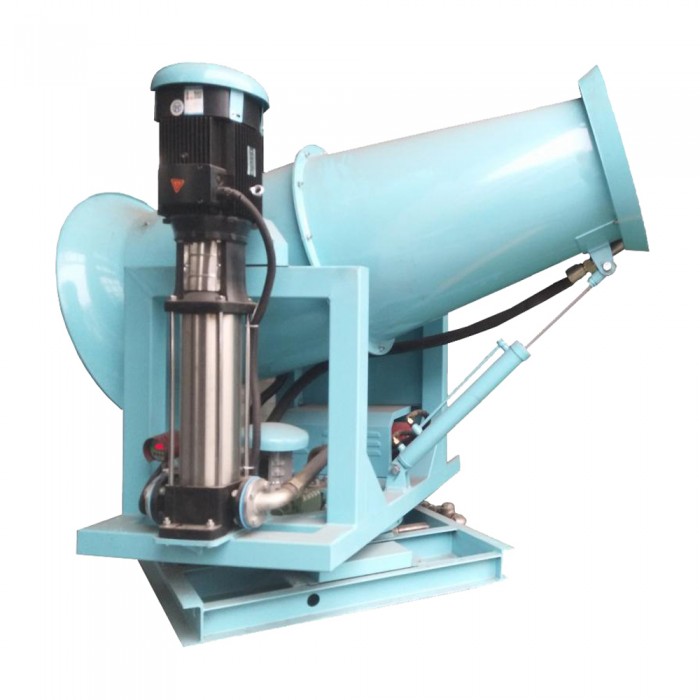

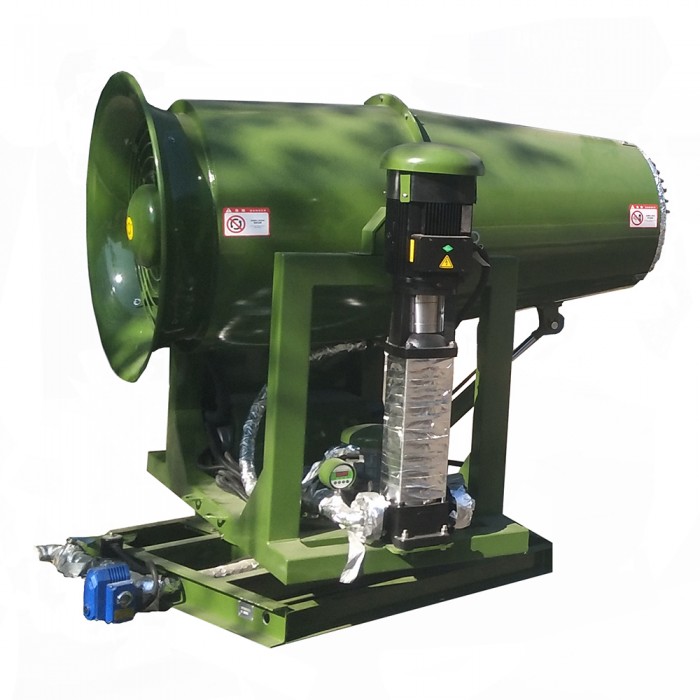

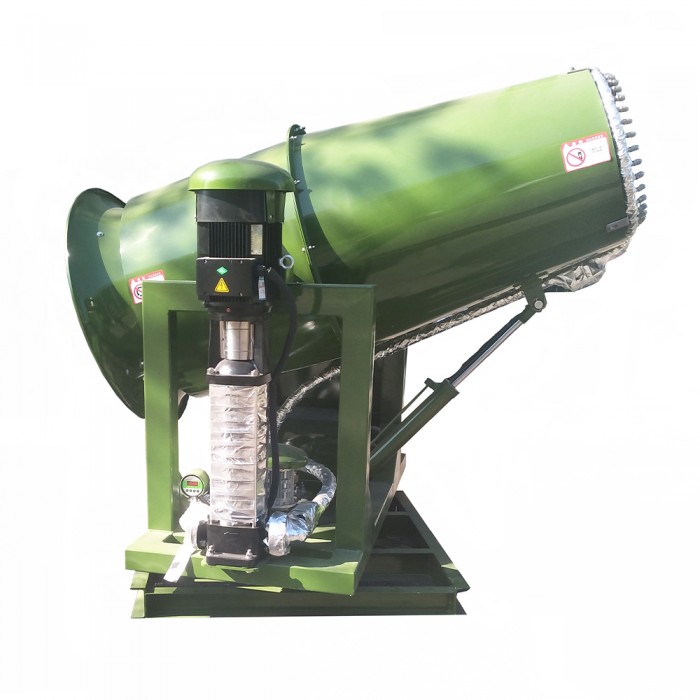

BY-60 Fog Cannon
BY-60 Fog Cannon
Fog Cannon BY60
BY-60 Fog Cannon

Fog Cannon BY60

1. Spray Distance                  60m
2. Rated Power                      26kw
3. Fan Motor                           2Pole -18.5kw Hengli Brand
4. Electronic                            ximenzi +Siemens PLC +Remote Control Main Parts
5. Water Pump                        2Pole-5.5kw CNP Brand,China
6. Water Consumption            5-6m³/h
7. Package Dimension            L2070*W2070*H1950mm
8. Gross Weight                      1150Kg

Specification ：

No Item Specification Remarks
1 Spray Distance 60m Testing Without Wind
2 Rated Power 26kw 380V/50Hz
3 Fan Motor 2Pole -18.5kw Hengli Brand
4 Motor Degree IP55
5 Fan Drum Φ750mm Thickness :3-4mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic Schneider +Siemens PLC +Remote Control Main Parts
8 Water Pump 2Pole-5.5kw CNP Brand,China
9 Water Consumption 5-6m³/h
10 Droplet Size 50-300μm
11 UP&Down Hydraulic
12 Protection System Limit + overload protection
13 Horizontal Rotation Hydraulic Gear Motor
14 Fan Blade Aluminum-magnesium alloy
15 Control On-site +100m remote control IP55
16 Pitching Angle （-5--+45）°
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 36 Pieces,1.2mm Etc
19 Antifreeze measures Water pipe heating and insulation
20 Package Dimension L2070*W2070*H1950mm The basement has mounting holes
21 Gross Weight 1150Kg
22 Appearance spraying Powder Spraying
23 Water Supply 1.5 inch pipeline, clean water source  0.3Mpa～0.5Mpa
