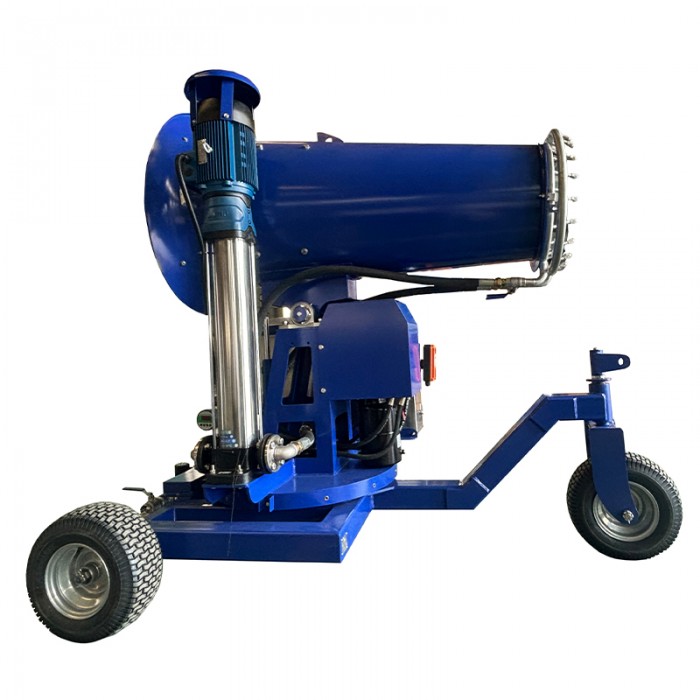

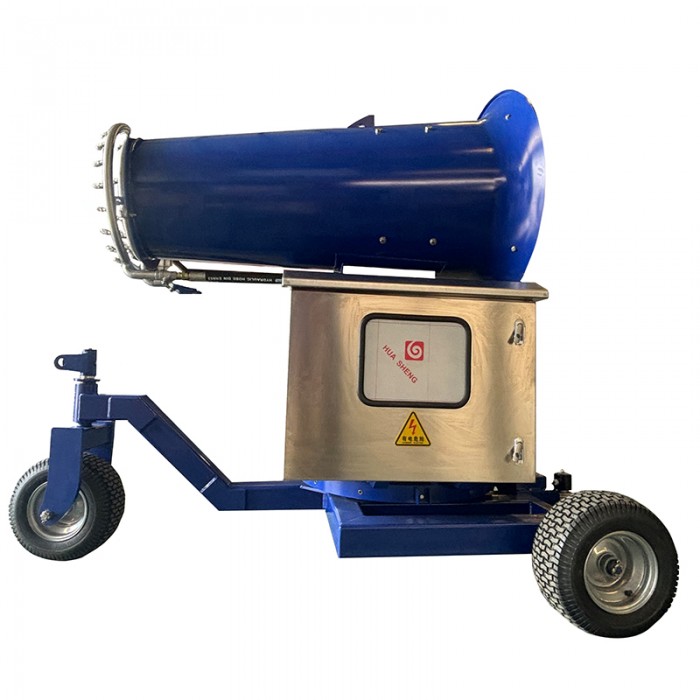

Fog Cannon BYM60
Fog Cannon BYM60

Fog Cannon BYM60

1. Spray Distance                   60m
2. Rated Power                      17kw
3. Fan Motor                          2Pole -11kw
4. Electronic                           Siemens PLC+ Remote Contorl Schneider*ABB
5. Water Pump                       2Pole-4kw CNP Brand,China
6. Water Consumption           4m³/h
7. Package Dimension            L2300*W1700*H2200mm
8. Gross Weight                      921Kgs

Specification ：

No Item Specification Remarks
1 Spray Distance 60m Testing Without Wind
2 Rated Power 16kw 380V/50Hz
3 Fan Motor 2Pole -11kw Fan Motor
Hengli Brand China,YE3
4 Motor Degree IP55
5 Fan Drum Φ650mm Thickness :2-4mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic  Remote Control +Siemens PLC Main Parts
8 Water Pump 2Pole-4kw CNP*NYP Brand,China
9 Water Consumption 4m³/h
10 Droplet Size 50-300μm
11 UP&Down Hydraulic
12 Protection System Limit + overload protection
13 Horizontal Rotation Hydraulic
14 Fan Blade Aluminum-magnesium alloy
15 Control On-site +100m remote control IP55
16 Pitching Angle (-5--+45)°
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 30Pieces,1.2mm Etc
19 Antifreeze measures Water pipe heating and insulation
20 Package Dimension 2300*1700*2200mm Mobile Type
21 Gross Weight 921Kgs
22 Appearance spraying Powder Spraying
23 Water Supply 1 inch pipeline, clean water source  0.3Mpa~0.5Mpa
