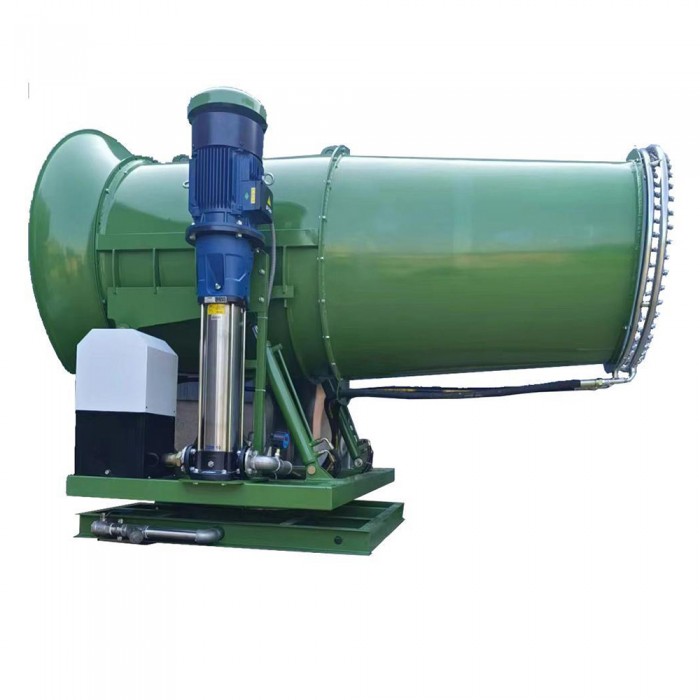

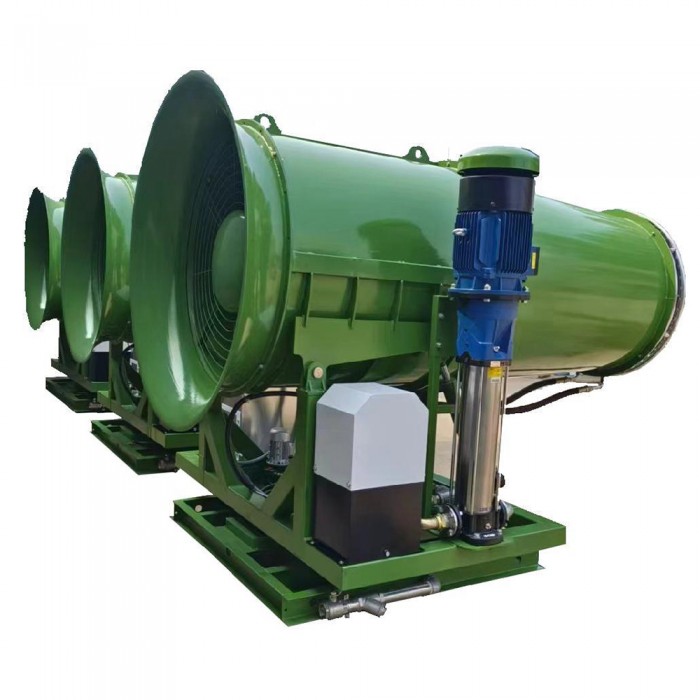

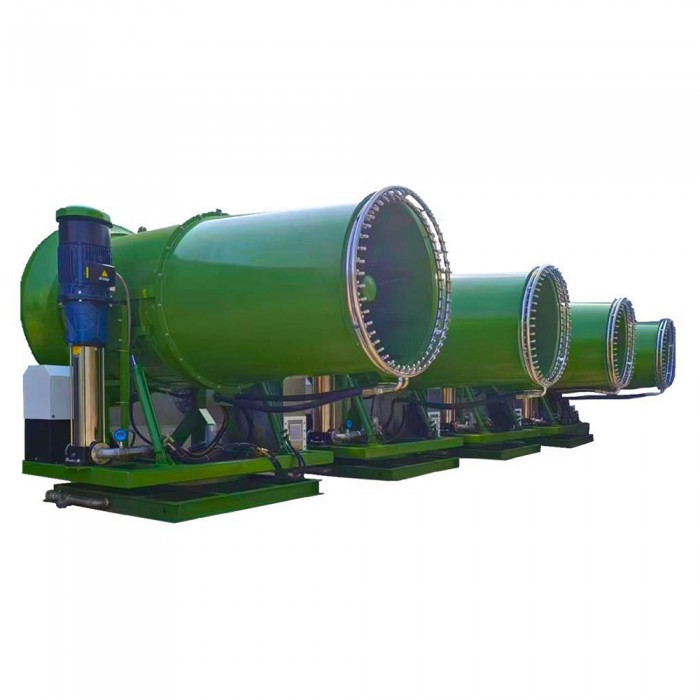

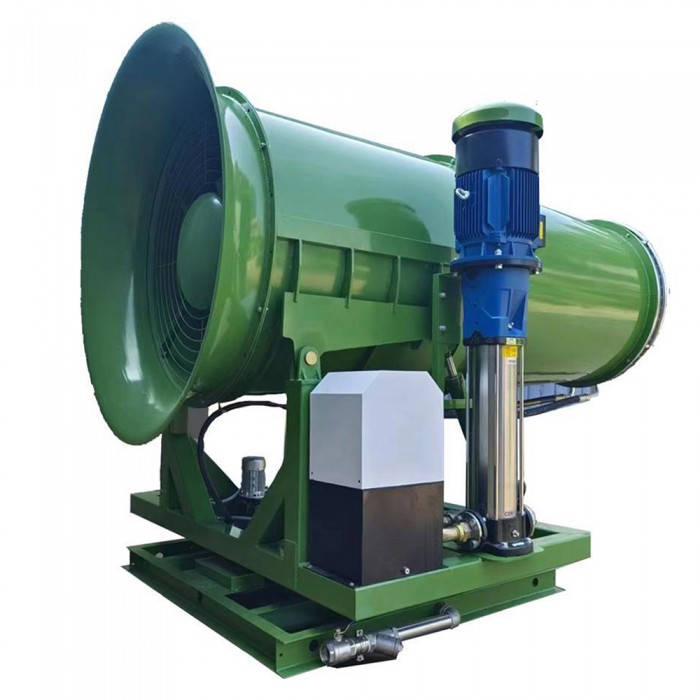

Fog Cannon BY120
Fog Cannon BY120
Fog Cannon BY120
Fog Cannon BY120
Fog Cannon BY120
Fog Cannon BY120

Fog Cannon BY120

1. Spray Distance                 120m
2. Rated Power                     95kw
3. Fan Motor                         4Pole-75kw
4. Electronic                          Siemens PLC+Remote Control Schneider *ABB
5. Water Pump                      2Pole-15Kw CNP Brand,China
6. Water Consumption          10-12m³/h
7. Package Dimension           L2900mm*W2200mm*H2300mm
8. Gross Weight                     2400Kg

Specification ：

No Item Specification Remarks
1 Spray Distance 120m Testing Without Wind
2 Rated Power 95kw 380V/50Hz
3 Fan Motor 4Pole-75kw HENGLI Brand
4 Motor Degree IP55 　
5 Fan Drum Φ1200mm Thickness4-6mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic Siemens PLC+Remote Control Schneider *ABB
8 Water Pump 2Pole-15Kw CNP Brand,China
9 Water Consumption 10-12m³/h 　
10 Droplet Size 50-300μm 　
11 UP&Down Hydraulic 　
12 Protection System Limit + overload protection 　
13 Horizontal Rotation Hydraulic Gear Motor
14 Fan Blade Aluminum-magnesium alloy 　
15 Control On-site +100m remote control IP55
16 Pitching Angle （-5--+45）° 　
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 2Water Rings,120Pieces, 1.2mm
19 Antifreeze measures Water pipe heating and insulation 　
20 Net Dimension L2900mm*W2200mm*H2300mm The basement has mounting holes
21 Net Weight 2400Kgs 　
22 Appearance spraying Powder Spraying 　
23 Water Supply 2 inch pipeline, clean water source 0.3Mpa～0.5Mpa
