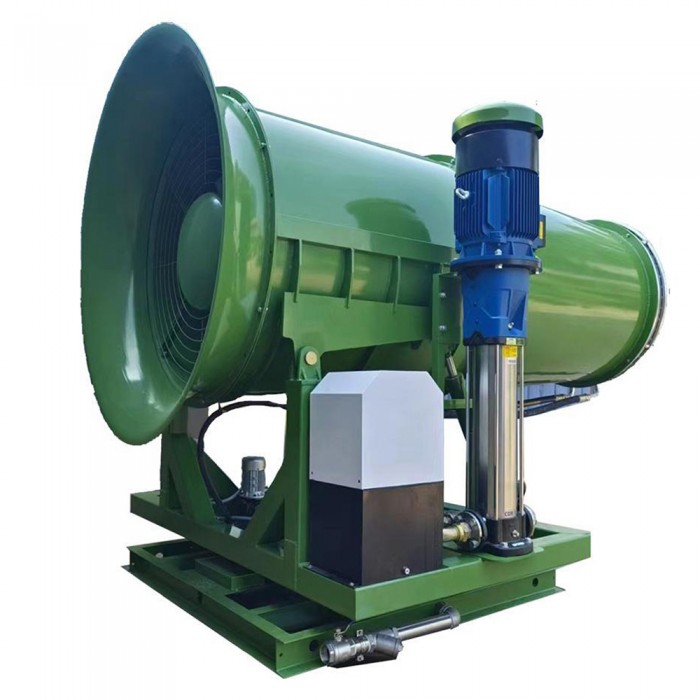

Fog Cannon BY120

  • Home
  • > Fog Cannon BY120
BY100
BY-120 Fog Cannon
BY-120 Fog Cannon
BY-120 Fog Cannon
BY-120 Fog Cannon

Fog Cannon BY120

1. Spray Distance                 120m
2. Rated Power                     95kw
3. Fan Motor                         4Pole-75kw
4. Electronic                          Siemens PLC+Remote Control Schneider *ABB
5. Water Pump                      2Pole-15Kw CNP Brand,China
6. Water Consumption          10-12m³/h
7. Package Dimension           L2900mm*W2200mm*H2300mm
8. Gross Weight                     2400Kg

Specification ：

No Item Specification Remarks
1 Spray Distance 120m Testing Without Wind
2 Rated Power 95kw 380V/50Hz
3 Fan Motor 4Pole-75kw HENGLI Brand
4 Motor Degree IP55 　
5 Fan Drum Φ1200mm Thickness4-6mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic Siemens PLC+Remote Control Schneider *ABB
8 Water Pump 2Pole-15Kw CNP Brand,China
9 Water Consumption 10-12m³/h 　
10 Droplet Size 50-300μm 　
11 UP&Down Hydraulic 　
12 Protection System Limit + overload protection 　
13 Horizontal Rotation Hydraulic Gear Motor
14 Fan Blade Aluminum-magnesium alloy 　
15 Control On-site +100m remote control IP55
16 Pitching Angle （-5--+45）° 　
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 2Water Rings,120Pieces, 1.2mm
19 Antifreeze measures Water pipe heating and insulation 　
20 Net Dimension L2900mm*W2200mm*H2300mm The basement has mounting holes
21 Net Weight 2400Kgs 　
22 Appearance spraying Powder Spraying 　
23 Water Supply 2 inch pipeline, clean water source 0.3Mpa～0.5Mpa
