mining explosive dust suppression machine uses gas-liquid phase change energy storage as the power source
CO ₂ as the working medium, and does not require mechanical devices such as water pumps and air pumps.

Mining explosive dust suppression machine uses gas-liquid phase change energy storage as the power source, CO ₂ as the working medium, and does not require mechanical devices such as water pumps and air pumps. The equipment product adopts asynchronous energy supply, cleverly avoiding the dilemma of sealing and wear under high pressure, and achieving high-power water mist spraying (FD type spraying power can reach over 800KW)

The birth of mining explosive dust suppression machine signifies the arrival of the "dust-free blasting era" and is the ultimate solution for blasting dust suppression Through the joint efforts of researchers, producers, and users, the product process continues to improve, and its performance, convenience, safety, reliability, and other indicators are also constantly improving Through the unremitting efforts of the Feipu R&D team and continuous iteration of product development and improvement, we have gradually formed four series of products: FS, FQ, FD,

FG.The FS series is a miniaturized series with low price and flexible use, suitable for dust suppression in small mines and tunnel blasting.

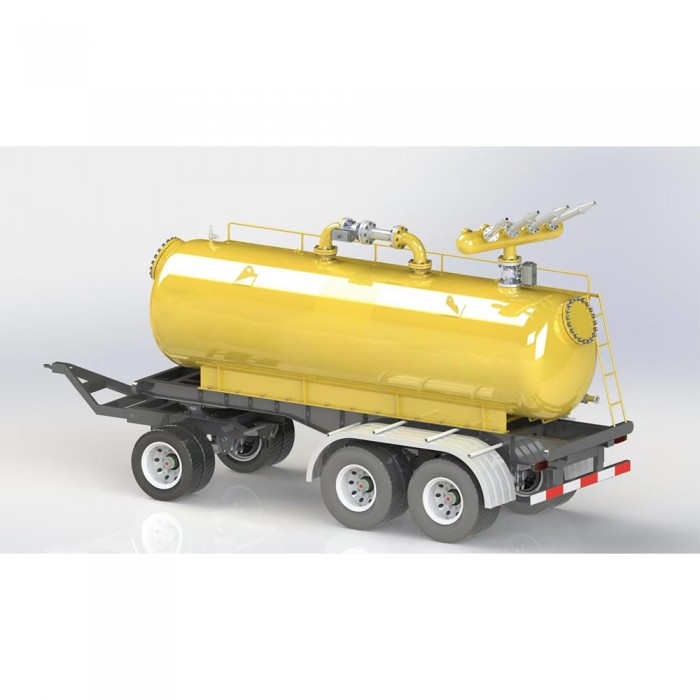

The FQ series is a traction type, with the highest cost-effectiveness and safe use. It is suitable for use in large and medium-sized mines, demolition blasting, and large-scale blasting dust suppression.

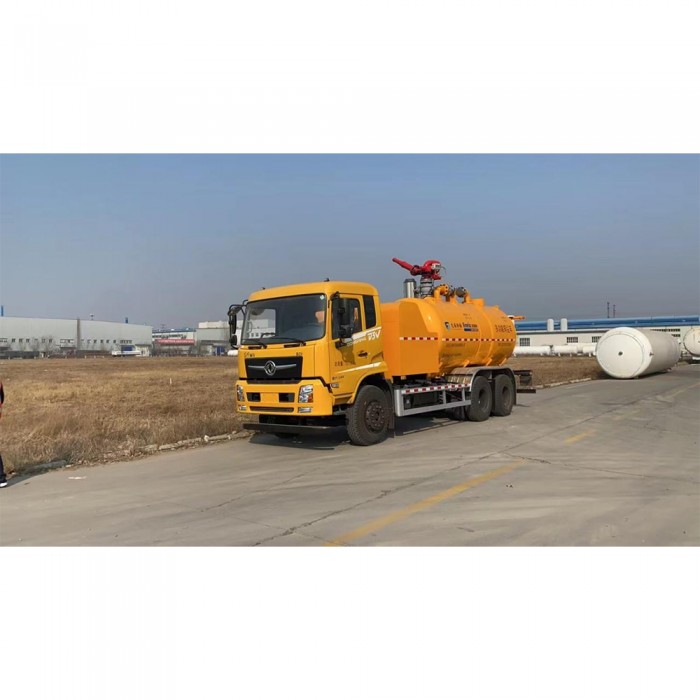

The FD series is a vehicle mounted type with good mobility and can be used for public transportation. It is suitable for application scenarios such as state-owned open-pit mines and large-scale mobile operation.

The FG series achieves pulse like, long-term continuous spraying, which can be used for applications such as high-rise fire extinguishing. Due to its implementation of pulse like continuous operation, its application fields are even broader.

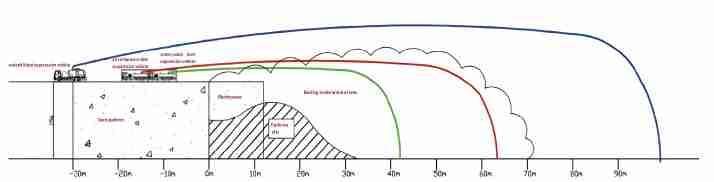

The water pump dust suppression vehicle, due to power limitations, is difficult to exceed 60 meters and has poor dust suppression effect

Air compressor dust suppression vehicle, with a spraying distance of about 70 meters, is barely usable for small-scale, loose blasting.

Waterfall blasting dust suppression equipment, with a spraying distance of over 150 meters, is the preferred

choice for achieving dust-free blasting.

Series FS-1 FS-3 FQ-2 FD-2
Spray Distance(M) ≥90 ≥50 ≥120 ≥150
Maximum coverage area of water mist(M2) 2000 Application tunnel cross-sectional area of 30m2 5000 6000
Work Pressure(Mpa) 3 2 3 3.5
Design Pressure(Mpa) 4 2.5 4 4
Water Tank(M3) 2 0.5 5.6 6
Gas Tank(M3) 2 0.5 5.6 5
Water Gun size(mm) 34~40 17~28 36~40 50
Gasification type Gas empowerment Naturally Gas empowerment Self empowerment
Weight(Kg) 2500 1000 6000 16650
Controller Model K-1,Distance>500m Cable Control K-1,Distance>500m K-2,Remote Control
Chasis Trailer Wheels Trailer Truck
Application Open mines,tunnels,and building demolitions Underground mines Open mines,building demolition,engineering blasting Open mines,building demolition,engineering blasting
