FOG CANNON BY20

  • Home
  • > FOG CANNON BY20

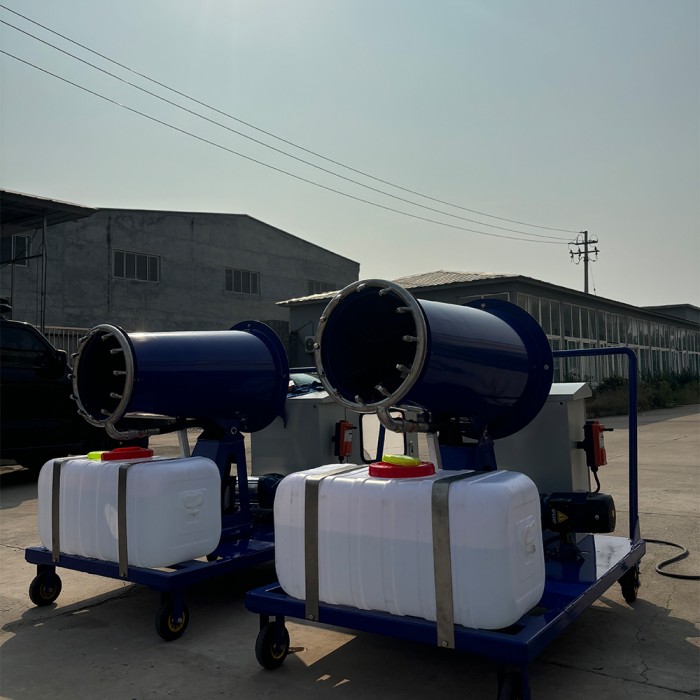

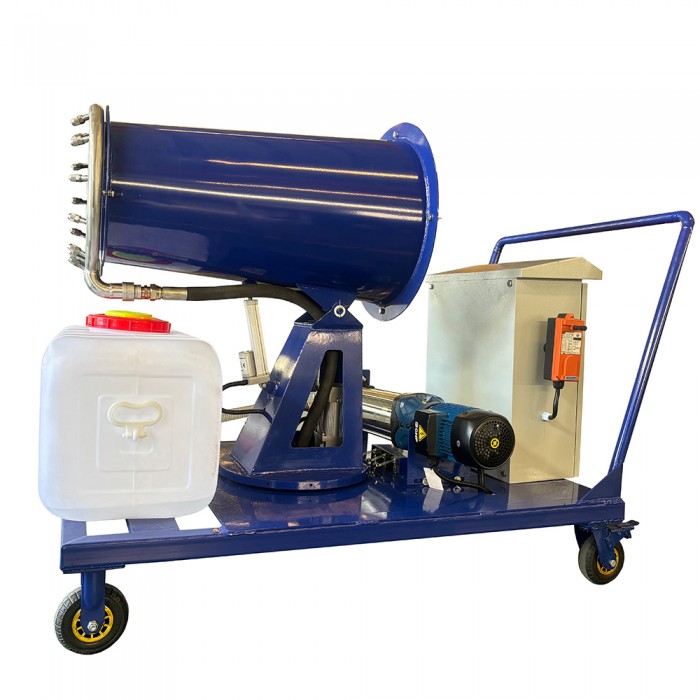

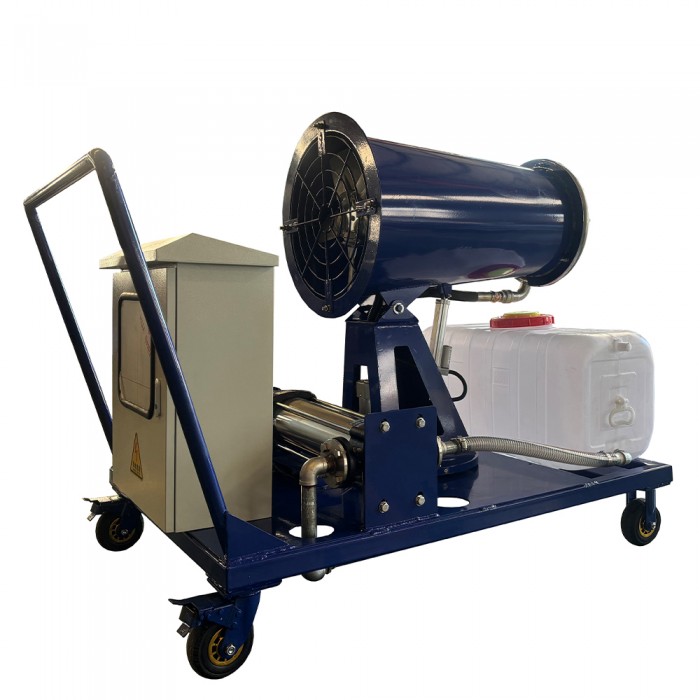

FOG CANNON BY20
FOG CANNON BY20
FOG CANNON BY20
FOG CANNON BY20

FOG CANNON BY20

1. Spray Distance                20m
2. Rated Power                    4KW
3. Fan Motor                        2Pole-2.2kw HENGLI Brand
4. Electronic                         Remote Control  Main Parts,Without PLC
5. Water Pump                     2Pole-1.1Kw CNP Brand,China
6. Water Consumption         2m³/h
7. Package Dimension          L1500mm*W1300mm*H800mm
8. Gross Weight                    255Kgs

Specification ：

No Item Specification Remarks
1 Spray Distance 20m Testing Without Wind
2 Rated Power 4KW 380V/50Hz
3 Fan Motor 2Pole-2.2kw HENGLI Brand
4 Motor Degree IP55
5 Fan Drum   Φ450mm Thickness :2-4mm
6 Control Cabinet Iron Box Powder Painting Mechanic Buttons
7 Electronic Remote Control  Main Parts,Without PLC
8 Water Pump 2Pole-1.1Kw CNP Brand,China
9 Water Consumption 2m³/h
10 Droplet Size 30-300μm
11 UP&Down Manual
12 Protection System Limit + overload protection
13 Horizontal Rotation Motor
14 Fan Blade Aluminum-magnesium alloy
15 Control On-site +100m remote control IP55
16 Pitching Angle (-5--+45)° Manual Adjusting
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 12Pieces,1.2mm Etc
19 Antifreeze measures Water pipe heating and insulation Optional
20 Package Dimension L1500mm*W1300mm*H800mm
21 Gross Weight 255Kgs
22 Appearance spraying Powder Spraying
23 Water Supply 1 inch pipeline,clean water source 0.3Mpa~0.5Mpa
