Fog Cannon BY80

  • Home
  • > Fog Cannon BY80

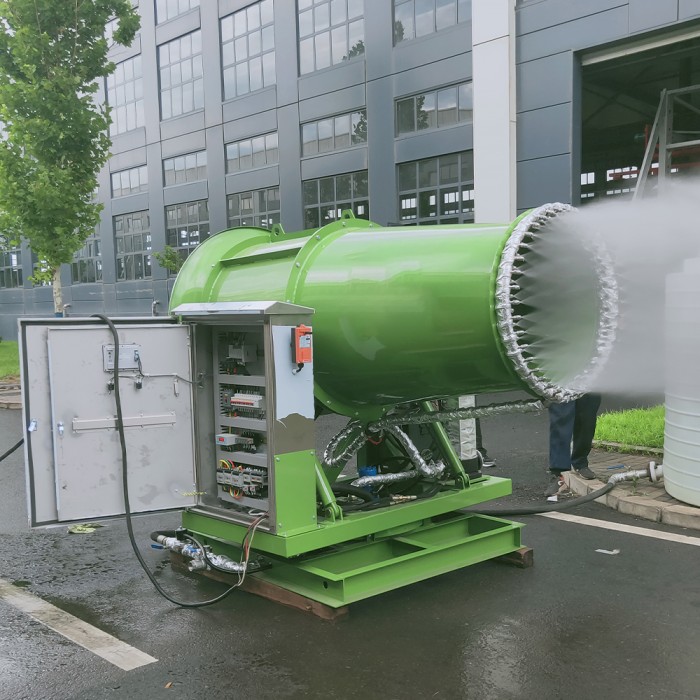

BY-80 Fog Cannon

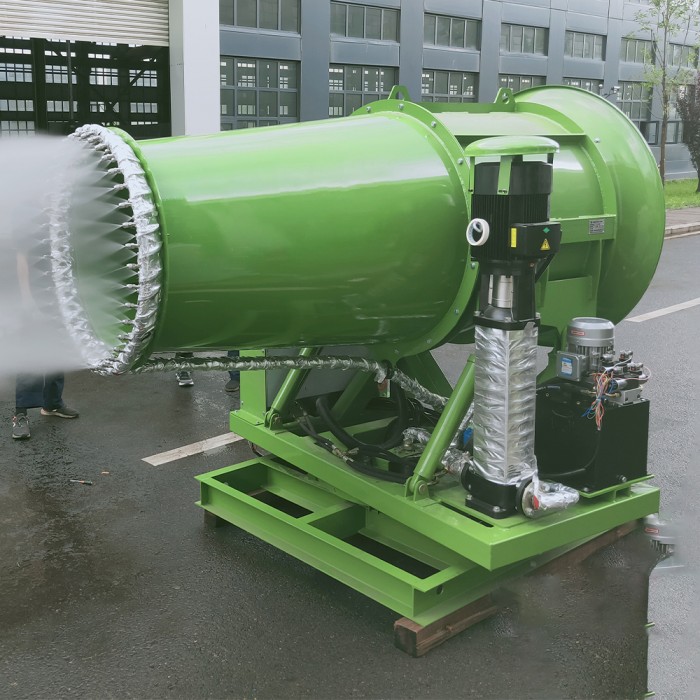

BY-80 Fog Cannon

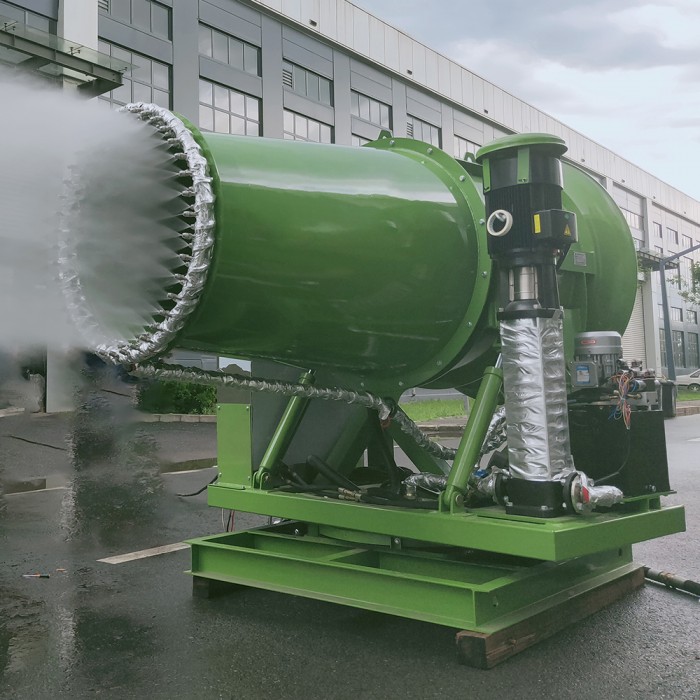

BY-80 Fog Cannon
BY-80 Fog Cannon
BY-80 Fog Cannon
Fog Cannon BY80

Fog Cannon BY80

1.  Spray Distance                      80m
2.  Rated Power                          47Kw
3.  Fan Motor                              4Pole-37kw
4.  Electronic                               Siemens PLC+ Remote Control Siemens PLC+ Remote Control
5.  Water Pump                           2Pole-7.5kw CNP Brand,China
6.  Water Consumption                7-9m³/h

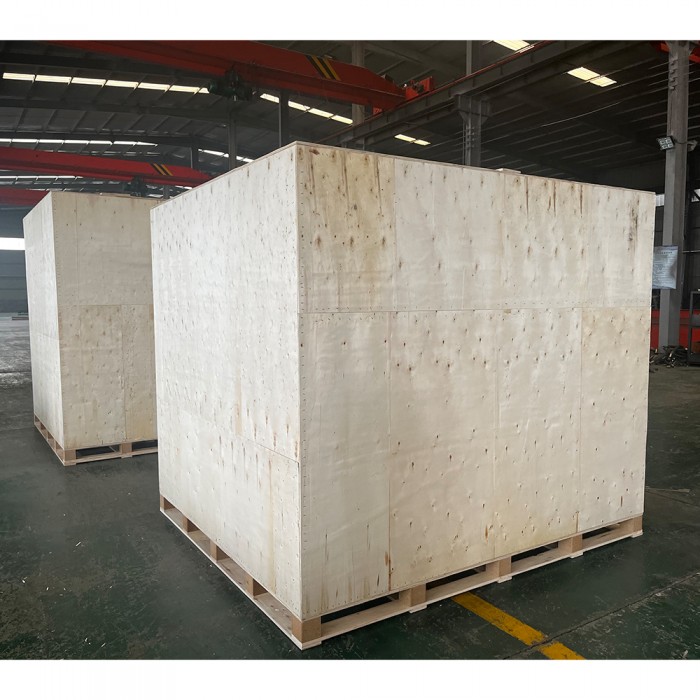

7.  Package  Dimension               L2500mm*W2200mm*H2200mm
8.  Gross Weight                          1900Kg

Specification ：

No Item Specification Remarks
1 Spray Distance 80m Testing Without Wind
2 Rated Power 47Kw 380V/50Hz
3 Fan Motor 4Pole-37kw Hengli Brand
4 Motor Degree IP55 　
5 Fan Drum Φ1000mm Thickness 4-6mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic Siemens PLC+ Remote Control ABB&Schneider
8 Water Pump 2Pole-7.5kw CNP Brand,China
9 Water Consumption 7-9m³/h 　
10 Droplet Size 50-300μm 　
11 UP&Down Hydraulic 　
12 Protection System Limit + overload protection 　
13 Horizontal Rotation Hydraulic Gear Motor
14 Fan Blade Aluminum-magnesium alloy 　
15 Control On-site +100m remote control IP55
16 Pitching Angle （-5--+45）° 　
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 2Water Rings,80Pieces, 1mm
19 Antifreeze measures Water pipe heating and insulation 　
20 Package Dimension L2500mm*W2200mm*H2200mm The base device has mounting holes
21 Gross Weight 1900Kg 　
22 Appearance spraying Powder Spraying 　
23 Water Supply 2 inch pipeline, clean water source 0.3Mpa～0.5Mpa
