Fog Cannon BY100

  • Home
  • > Fog Cannon BY100

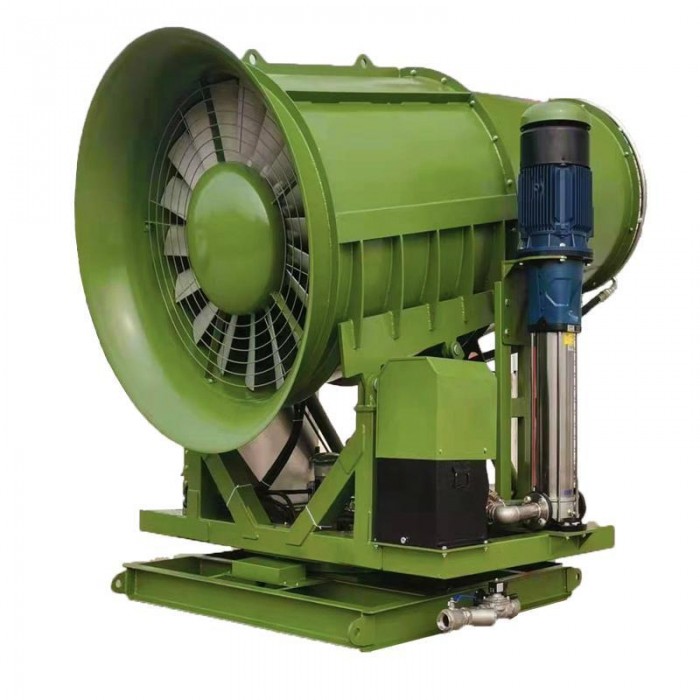

BY120m

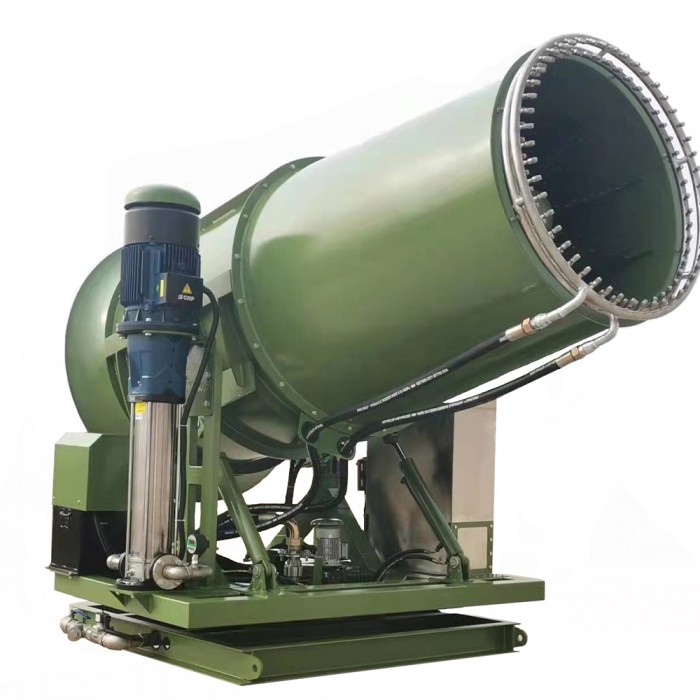

Fog Cannon BY100

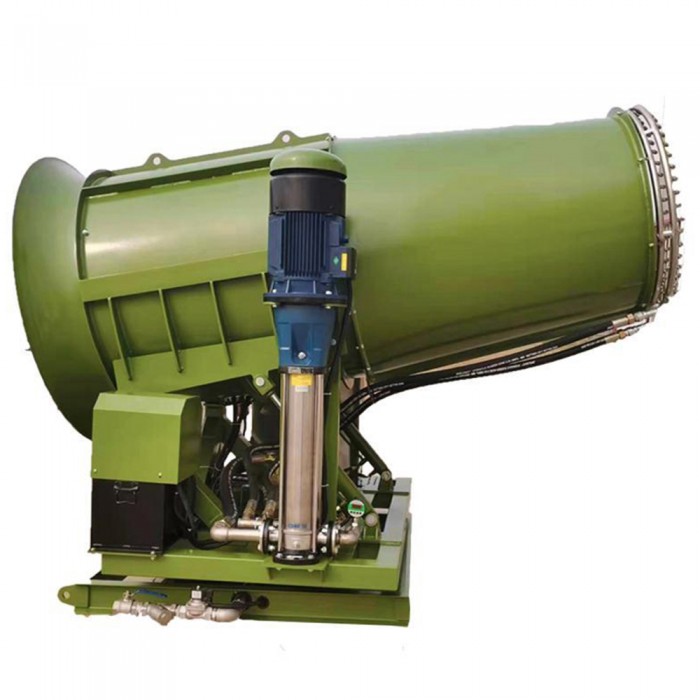

BY-100 Fog Cannon
BY-100 Fog Cannon

Fog Cannon BY100

1. Spray Distance               100m
2. Rated Power                   69kw
3. Fan Motor                       4Pole-55kw
4. Electronic                        Siemens PLC+ Remote Control Schneider&ABB
5. Water Pump                    2Pole-11Kw CNP Brand,China
6. Water Consumption        10-12m³/h
7. Package Dimension         L2865mm*W2160mm*H2296mm
8. Gross Weight                   2070Kgs

Specification ：

No Item Specification Remarks
1 Spray Distance 100m Testing Without Wind
2 Rated Power 69kw 380V/50Hz
3 Fan Motor 4Pole-55kw Hengli Brand
4 Motor Degree IP55
5 Fan Drum Φ1200mm Thickness:4-6mm
6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic Siemens PLC+ Remote Control Schneider&ABB
8 Water Pump 2Pole-11Kw CNP Brand,China
9 Water Consumption 10-12m³/h
10 Droplet Size 50-300μm
11 UP&Down Hydraulic
12 Protection System Limit + overload protection
13 Horizontal Rotation Hydraulic Gear Motor
14 Fan Blade Aluminum-magnesium alloy
15 Control On-site +100m remote control IP55
16 Pitching Angle （-5--+45）°
17 Horizontal Rotation Angle 0-320° Adjustable
18 Spray Nozzle SS304 2Water Rings,100Pieces, 1.2mm
19 Antifreeze measures Water pipe heating and insulation
20 Nude Dimension L2865mm*W2160mm*H2296mm The basement has mounting holes
21 Net Weight 2070Kgs
22 Appearance spraying Powder Spraying
23 Water Supply 2 inch pipeline, clean water source 0.3Mpa～0.5Mpa
