1   Item	Voltage	Hz	Spray Distance	Rotation
2   Spray Head	110~240V/1Phase	50&60Hz	8~30M	0~360ºC
3   Motor	Step Motor
4   Control-1	Button Panel
5   Control-2	Touch Panel


Part of Oversea Partner Address:

Germany, Mr Walter Mörtlbauer,Address:Aspertsham 10,D-94081,Furstenzell,Germany

Thailand:May,Address:14 SOI RAMA II SOI 68,SAMAEDUM BANGKHUNTIEN,BANGKOK 10150 THAILAND

Vietnam :Mrs Bich Hoa Address:343/68 H To Hien Thanh,Ward 12,Dist 10,HCMC Viet Nam

Australia &New Zealand:Mr Glen Lee.

Peru&Chile in South America:Mr Walter etc

Malaysia:Mr Chuong,Lot 5.108,5th Floor,Wisma Central,Jalan Ampang,50450,W.P.Kuala Lumpur Malaysia.

Russia:Mr Vladimir,Mr Evgeny ,6-3 Slobodskoy lane, 111033 Moscow Russia.

South Africa:Mr Mike,Durban area.

Indonesia: Mr Suhandi,Jakarta area

Fog Pile Introduction
The fog pile system is a fast and effective dust suppression product mainly aimed at the occasions with large outdoor dust. The device pressurizes the water to a high pressure of 80-100 bar under the drive of the power source of the water pump, and sprays the mist on an area with a radius of 8-30 meters through the principle of making mist with water. The product has the characteristics of intelligence, multiple control methods, and large dust suppression coverage. It is generally arranged on the site where dust is concentrated, such as roads, storage yards, stock yards, etc.
Performance characteristics:
1. The fog pile produces small particles of water mist, which can spray dust in a large area and a large range
2. At the same time, it can increase the humidity of the air and create a comfortable working environment
3. The high temperature in summer can control the temperature at 20°-35°, which has the effect of cooling
4. Fog pile spraying equipment occupies a small area, requires less equipment investment, has a high degree of intelligence, and has low operation and maintenance costs.

High pressure spray dust suppression fog pile dust removal and deodorization disinfection, livestock farm disinfection, garbage incineration humidification disinfection, sewage treatment plant disinfection, vegetable orchard disinfection, etc.
Mine dust removal, mining surface dust removal, transfer point dust removal, crusher dust removal, conveyor belt dust removal, screening machine dust removal, hoist dust removal, vibration feeder dust removal, impeller feeder, ash fall dust removal...

Intelligent
The touch screen control method is adopted, and the operation is intuitive and simple. A variety of control modes, the most reasonable mode can be used according to the actual situation of the site, and each mode can also be adjusted in time. The start and end can be set at any time.

Multiple control mode

Manual Control: Manually turn on and off fog piles in the area
Time control: can set the opening time and closing time, and start and stop according to the time cycle
Ground-sensing control: Using ground-sensing control, when it is detected that there is a vehicle passing by, the fog pile is turned on, and when the delay time expires, the fog pile is automatically closed. Dust detection and control: The implementation data is monitored through dust monitoring, and the system starts when the dust exceeds the standard.

Good dust suppression effect

The high-pressure pump is used to pressurize the water to atomize, the atomized particles are fine, and the amount of water can be adjusted by pressure, which can have a good dust suppression effect on outdoor large dust.

Better energy saving and compatibility

The power source adopts frequency conversion motor, which is more energy-saving. The spray system can be effectively compatible with temperature sensing, sound sensing, infrared and other equipment to achieve a higher level of automation.

low noise

The high-pressure pump unit is used, which is concentrated in the machine room. The droplet transportation mainly relies on the pressure of the water itself, which reduces the noise of the high-power fan.


Dust Online Monitoring System

The monitoring data are: wind direction, wind speed, humidity, temperature, TSP, PM10, PM2.5, noise The optional equipment can exchange data with the outdoor dust suppression system to control the start and stop of the equipment.

Antifreeze system, high pressure blows back the water retained in the pipeline to prevent the pipeline from freezing and cracking in the cold environment. The dust online monitoring system can be used for data transmission. When the temperature reaches below the set value, the antifreeze system will automatically start.


Mode	40Bar	60Bar	80Bar	100Bar
1/4ZF-SS4.0	40 L/M (13-18)m	48 L/M (15-20)m	56 L/M (17-22)m	64 L/M (19-24)m
1/4ZF-SS3.0	28 L/M (12-16)m	34 L/M (14-18)m	40 L/M (16-20)m	44 L/M (18-22)m
1/4ZF-SS2.5	20 L/M (11-14)m	24 L/M (13-16)m	28 L/M (15-18)m	33 L/M (16-19)m
1/4ZF-SS2.0	17 L/M (7-10)m	20 L/M (7-11)m	24  L/M (8-12)m	28  L/M (10-14)m
1/4ZF-SS1.5	8 L/M (4-6)m	10 L/M (5-7)m	11.5 L/M (6-8)m	12.8 L/M (6-10)m

Nozzle selection; the spray distance is required to be long, and the aperture of the nozzle is selected in the 1/4ZF-SS3.0&4.0 range, and the particles are relatively large. The spray particles are required to be fine, and the nozzle aperture is selected to be 1/4ZF-SS1.5&2.0, the range is relatively short, but the particles are relatively fine. The nozzle material is generally made of stainless steel, inlaid with ceramics, and inlaid with ruby. Nozzles with special material flow can be customized.

According to the flow rate of the nozzle, the size of the main pump can be selected, from one to one to one to sixteen. Note: In the case of one drag and more, it is necessary to calculate the upper pressure and flow loss, especially in the case of long distances.


One control cabinet for 1 fog pile

Pressure Hose + Column

Effect:

The plunger pump specification :

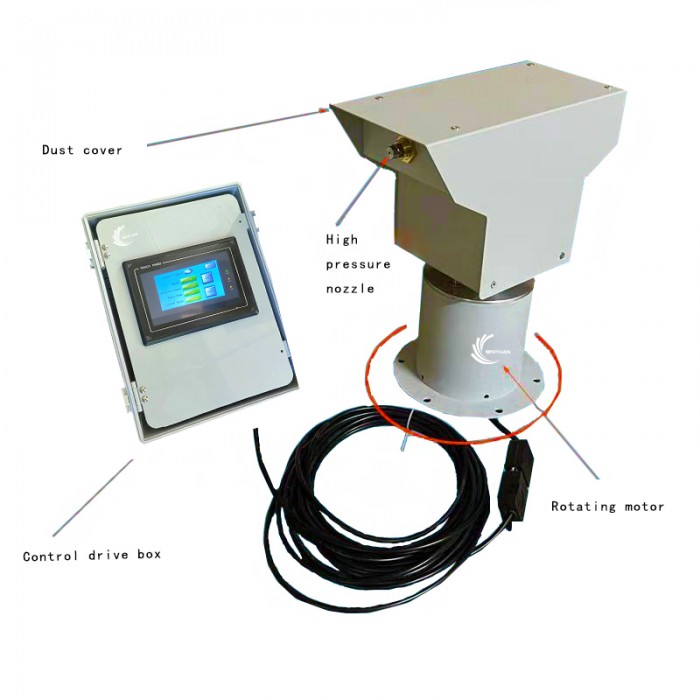

Fog pile head configuration
The machine head has a cover, stepper motor control power box, motor driver, controller, touch screen, steel body and other electrical components are precisely assembled. In this way, the angle can be adjusted arbitrarily, the speed can be adjusted arbitrarily, and the fog pile and the water pump can work synchronously. The electrical components use domestic well-known Chint or equivalent brands.

One-to-four wire connection method: One-to-four means that one main engine pump is equipped with 4 fog piles, and the main engine pump working fog piles do the spraying work at the same time. Power connection method, each fog pile needs to be prepared with 220V power supply, and 4 fog piles need to be connected in parallel with the power signal (ie passive signal line) generally connected from the water pump to trigger the 4 fog piles and the water pump to rotate at the same time. The water pipeline also needs to be distributed from the host to each fog pile. Generally, the infrastructure part adopts 304 seamless stainless steel pipe, and the part connecting the fog pile adopts high-pressure steel wire hose. The maximum pressure of the steel wire hose is 200kg, and the inner hole is generally 6-16mm.

The height of fog pile steel body is generally 4 meters, 6 meters, 12 meters, the material is generally 45# steel, the whole is hot-dip galvanized and sprayed. Customers can also make their own steel body parts. The embedded size of the steel body is a four-hole flange, 4 meters is the hole distance of 170mm, the diagonal line is 240mm, 6 meters is the hole distance of 24.8mm, and the diagonal line is 340mm. The 12-meter hole distance is 300mm, and the diagonal line is 424mm.
